Connecting Objects

Objects become useful when they are connected.

AnyDB has exactly two ways to connect objects:

  1. Attach – place one object inside another as a child (structural, one-to-many)
  2. Link – reference one object to another (associative, one-to-one)

These two concepts cover all real-world relationships.

Attachment: placing objects inside other objects​

An attachment places one object inside another object as a child record.

AnyDB What does an Object Contain

This creates one thing with many parts:

  • one main object
  • many attached objects inside it

Think of it as:

  • something that lives inside something else
  • something that is part of the main object
  • something that is created and removed with it

An attached object:

  • is still its own record
  • has its own fields, files, and history
  • shows up inside the parent’s attachments list
  • can also have things attached to it

Attachments support rollups (aggregation)​

Attachments are how you add things up in AnyDB (aggregation).

Because attached objects live inside a parent, the parent can:

  • add up values from its attachments
  • count how many there are
  • show totals, status, or progress

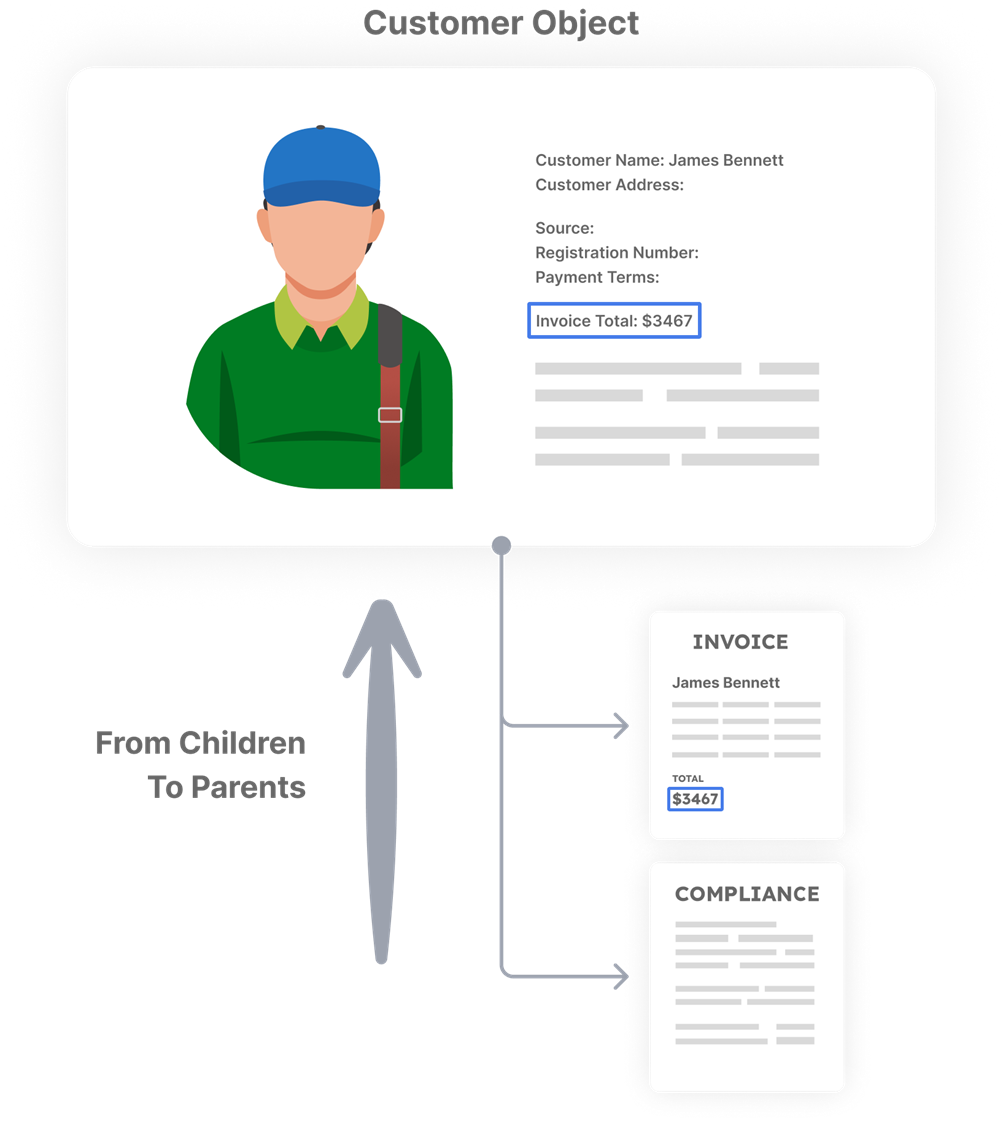

AnyDB Child to Parent Flow

Examples:

  • Order totals from order lines
  • Project progress from tasks
  • Warehouse value from inventory items

If you need totals or summaries, use attachments

Once records are attached, you can also have data flow from parents to child objects.

AnyDB Parent to Child Flow

The attachment rule (most important)​

If an object should not exist on its own, it should be attached.

Attachments define lifecycle.

  • Deleting a parent removes its attached objects
  • If an attached object has no other parents, it is deleted
  • If it is attached to multiple parents, it remains where still attached

This behavior is intentional and predictable.

Examples of attachments​

Attachments are appropriate for objects like:

  • order lines
  • inspection records
  • tasks inside a project
  • quality checks
  • maintenance logs

These objects do not make sense without their parent context.

Here's a full hierarchy of business objects.

Attachment Relationship Hierarchy Concept

Multiple parents are allowed​

An attached object can be attached to more than one parent.

This does not duplicate the object.

It means:

  • the same object appears in multiple contexts
  • it keeps a single identity
  • deleting one parent removes it only from that parent

For example, a single Sales Contract record can be attached to Customer record and also to a Project record.

AnyDB Child Multiple Parents

A link connects one object to another without putting it inside.

Think of it as:

  • one object pointing to another
  • something being used, not owned
  • association
  • reference

A link is a one-to-one connection:

  • one object points to another object

Linked objects:

  • exist independently
  • are not deleted when other objects are deleted
  • appear in the object's Connected Records list
  • can be referenced in formulas to pull data using lookups (DYNREF)

Linked Record Example

To create link, in a cell inside the record, select the type as Reference.

Then select the record you want to link to. Once linked, you can click the link to navigate to the related record.

note

Only records in the same database can be linked directly.

Links allow you to read data from another object.

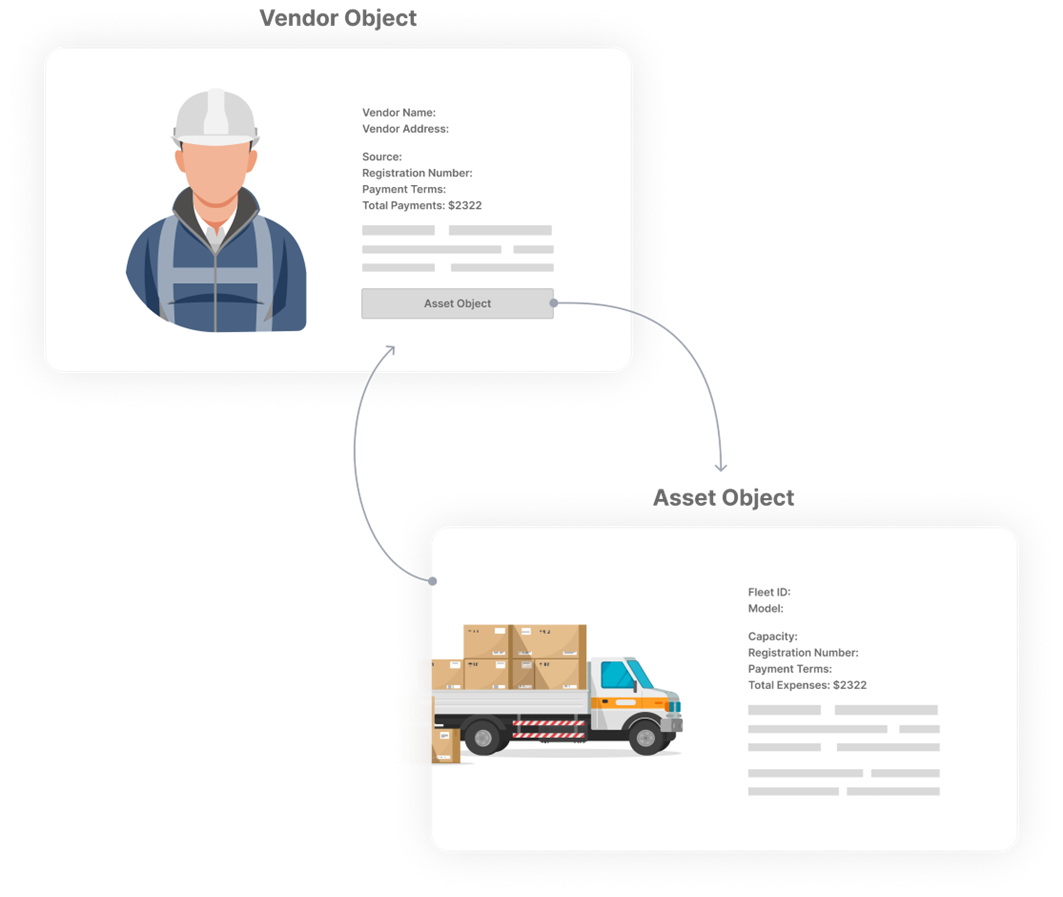

Read data from Linked Records

Using lookups:

  • values are pulled dynamically from the linked object
  • changes in the linked object are reflected automatically
  • no duplication of data is required

Links do not support rollups or aggregation.

If an object should exist independently, it should be linked.

Links do not control lifecycle and do not imply ownership.

Links are appropriate for objects like:

  • customers
  • vendors
  • employees
  • products / SKUs
  • warehouses (when used as locations)
  • categories

These objects are reused across many contexts.

One decision rule to remember​

When deciding between attach and link, ask:

Should this object still exist if everything else is deleted?

  • If no → Attach
  • If yes → Link

This single rule aligns with:

  • lifecycle and deletion behavior
  • rollups vs lookups
  • reuse vs instance modeling
  • real-world expectations
